"Gasoline & Diesel Condensator"
A Closed Crankcase Ventilation System

   Diesel:  D and  Dx   Series

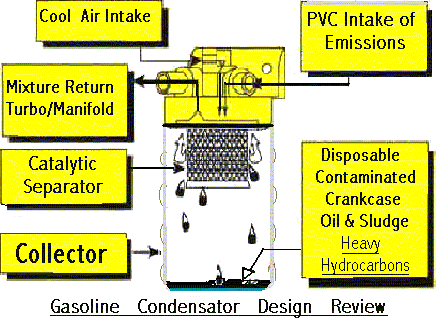

The gasoline condensator and diesel have the same basic design - just differing settings. Place your order online or call us with the part number to replace your gasoline or diesel engine condensator part with our menu list; below:   If you would like to order a new gasoline condensator, click here to gain more information on our product, before placing your order.

                                 2003 Parts Catalog for Diesel and Gasoline Condensators

Pricing  &  Responsibilities

      A)  Parts listed below are current by our manufacturing plant, subject to change w/o warning or notice.
           1)  You will also be notified through this website as time allows for.
           2)  The prices will not be reflective with shipping costs involved.
           3)  Credit card charges will also be assessed a 3% charge with all orders.
           4)  Please specify what form of shipping you desire: UPS, USPS, Fedex ... etc.
           5)  Shipping costs will be assessed when we receive a quote as to your preference.
AGS Condensator    (307) 856.5484
THE CONDENSATOR:
GASOLINE ENGINES
DIESEL     ENGINES
MORE   ECONOMICAL
EMISSION CONTROL
Condensator Parts and

Instructions For Diesel Engines
Such As:

Cummins L-10, N-14, or NTC

Replacement/Repair Parts

KIT  INSTALLATION   INSTRUCTIONS



INSTALLATION KIT PARTS LIST

  • Four mounting assemblies
  • Six 12# hose clamps
  • Nine #10 hose clamps
  • One 1/4" street elbow
  • Four 3/8" street elbows space savers for Condensator ports
  • Two 3/4" x3/4"x3/4" PVC "Y" connectors
  • One 6' section of 3/4" hose
  • One 12' section of 5/8" hose
  • Six 8" nylon ties
  • Four 15" nylon ties
  • Air intake adaptors
  • One bulk head fitting and one 1/2" pipe x 3/4" hose brass adaptor
  • Assembled Pressure Relief Adaptor Cummins

    AGS  Condensator
    (307) 856.6343

    		• Read instructions completely before starting
    IMPORTANT: Use pipe sealer on all connections.

    1.) Remove a section of the aluminum intake tubing at a place between the air filter and the turbocharger where it will be convenient to attach a hose.
    2.) Drill one 1" hole and insert the bulk head fitting with the hex nut on the outside and the 1/2" pipe x 3/4" hose adaptor also pointing outside.
    3.) Re-assemble air intake system.
    4.) Cut road draft tube so that there is only a 4" section left.
    5.) Using a #12 hose clamp , attach a short section of 3/4" hose to this 4" section of road draft tube.
    6.) Using a #12 hose clamp , attach pressure relief adaptor to the other end of hose that is attached to the road draft tube.
    7.) Using #12 hose clamps , attach another section of 3/4" hose to the other end of the pressure relief adaptor and attach the other end of that hose to a "Y" connector.
    8.) Find a suitable location, such as the firewall, to mount The Condensator units. They should be kept away from extreme heat such as exhaust manifolds. The shorter the hoses are, the more efficient the system will be.
    9.) Mount The Condensator units onto chosen location . Attach The Condensator with supplied mounting assemblies.
    10.) Using #10 hose clamps, attach two sections of 5/8" hose to "Y" connector leading from the crank case and attach the other ends of the 5/8" hose to crankcase inlet ports on each Condensator.
    11. Using #10 hose clamps attach two short sections of 5/8" hose to the intake outlet ports of each Condensator and attach the other ends to the second "Y" connector.
    12.) Using a #12 hose clamp , attach a section of 3/4" hose from the "Y" connector to their bulk head fitting that has been attached to the intake pipe.
    13.) Tie up the hoses with nylon tie straps.

       Fuel              Accessories & Parts for - A B C     D  Dx

    		Part Number Price Each Minimum  of  5  S&H;            Total
    Gas   C   Condensator;   Head Top CSC 01 $82.00 $62.ea x 5 $10.00 $
    Diesel   D  or Dx   Condensator;   Head Top CSC 02 $84.00 $64.ea x 5 $10.00 $
    Gas-Diesel   C   D  +   Dx   Condensator;   Separator CSC 03 $52.00 $42.ea x 5 $10.00 $
    Diesel   Dx   Condensator; only   Top Separator CSC 04 $52.00 $42.ea x 5 $10.00 $
    Diesel   Dx   Condensator; only   Separator Extension CSC 05 $12.00 $10.ea x 5 $10.00 $
    Gas-Diesel   C   D   Dx   Condensator; only   O  Ring Separator CSC 06 $3.00 $2.75.ea x 5 $10.00 $
    Diesel   Dx   Condensator   only   Top Separator CSC 07 $12.00 $10.ea x 5 $10.00 $
    All   Condensator Models   O  Ring for Collection CSC 08 $3.50 $3.ea x 5 $10.00 $
    All   Condensators     Vapor Baffle CSC 09 $5.50 $5.ea x 5 $10.00 $
    A B   Past Model Condensators     Valve  or  Collector Gasket CSC 10 .95c $5.00 .95ea 4.50x5 $10.00 $
    A B   Condensator     Spring Replacement CSC 11 $2.95 $2.75ea x 5 $10.00 $
    A B   Condensator    Elbow;   1/4 inch   Nut & Ferrell CSC 12 $5.00 $4.50ea x 5 $10.00 $
    C D Dx         1/4 inch Plugs CSC 13 $2.60 $2.25ea x 5 $10.00 $
    A B C         1/4 inch Nipple CSC 14 $2.50 $2.25ea x 5 $10.00 $
    D   Dx         3/8 inch Nipple CSC 15 $2.80 $2.50ea x 5 $10.00 $
    D        Condensator Collector    (Quarts size Glass) CSC 16 $2.50 $2.25ea x 5 $10.00 $
    C        Condensator Collector    (Pint size Plastic) CSC 17 $11.00 $9.ea x 5 $10.00 $
    All        Condensator Collector    (Quarts size Plastic) CSC 18 $13.00 $11.ea x 5 $10.00 $
    All        Hex-Headed    Screw CSC 19 .50ea .50ea x 5 $10.00 $
    A  B  C         1/2 inch PCV Gasoline Hose CSC 20 $3.00 $2.25ea x 5 $10.00 $
    D  Dx         5/8 inch Hose CSC 21 $3.40/ foot $3.00ea x 5 $10.00 $
    A  B  C         1/2 inch Hose Clamp CSC 22 $1.50ea $1.25ea x 5 $10.00 $
    D  Dx         3/8 inch   Hose Clamp CSC 23 $1.70ea $1.50ea x 5 $10.00 $
    A  B         1/8 inch Barb-A   or  B (3 point) CSC 24 $3.00 $2.25ea x 5 $10.00 $
    A  B         1/2 inch Adaptor CSC 25 $2.70 $2.50ea x 5 $10.00 $
    A  B         1/4 inch   Aluminum Tubing CSC 26 $1.40 $1.25ea x 5 $10.00 $
            Manufacturer's Brochures for   Gasoline Condensators CSC 27 $2.50 $2.25ea x 5 $10.00 $
            Manufacturer's Brochures for   Diesel Condensators CSC 28 $2.50 $2.25ea x 5 $10.00 $
            Counter Diplays for   Gasoline Condensators CSC 29 $190.ea $150.ea x 5 $10.00 $
    Condensator   Menu   Review
    DETROIT DIESEL CATERPILLAR CUMMINS JOHN DEERE
    2-71 D 343 DX BTA DX 3029D D
    3-53 D 353 DX-2 B5.9 DX 3029T D
    3-71 D 3116 DX C8.3 DX 3179D D
    4-53 D 3176 DX L10 DX 3179T D
    4-71 DX 3304 DX M11 DX 4039D DX
    6-71 DX 3306 DX N14 DX 4039T DX
    6v-53 DX 3404 DX NTC DX 4045D DX
    8v-71 DX 3406 DX 855 DX 4045T DX
    12v-71 DX-2 3408 DX-2 903 DX 6059D DX
    16v-71 DX-2 3412 DX-2 KTA DX 6059T DX
    6v-92 DX 3508 DX-3 38L DX-3 6068D DX
    8v-92 DX 3512 DX-3 50L DX-3 6068T DX
    12v-92 DX-2 3516 DX-3 1710 DX-3 6076T DX
    16v-92 DX-2 3606 DX-3     6076A DX
    8v-149 DX-3 3608 DX-3     6076H DX
    12v-149 DX-3 398 DX-3 6081T DX
    16v-149 DX-3 399 DX-3 6081A DX
                6081H DX
                6101A DX
                6101H DX
    Also available for:    Alco, Lugger, Mack, Perkins, Isuzu, EMD, Volvo, Johnson Towers, Iveco, Deutz, International and Yanmar     (also, if you don't see your "engine or parts" on the menu, describe it & fax it to us)
             All models and sizes are shipped complete with installation kit.
              Model for Parts Menu of Condensator:   Volume discounts available in writing only

    Here's How To Special Order:
    Email us the details for your Diesel or Gasoline Condensator here or by doing the following then fax it:
  • Gasoline Condensators we will need "Make - Year - Model" for product or parts
  • Gasoline Condensators parts, please indicate by part numbers assigned above
  • Diesel Condensators parts, please indicate by part numbers assigned above
  • In writing, give us information of diesel engine make "Detroit   Cummins  John Deere  Caterpillar  with Cubic Inches"
  • Breather Size (port hole diameter for condensator connection hose) going to blower
  • Diesel engine size  4 cylinder   6 cylinder   V-8  and etc
  • A valid email address (if available), telephone and fax number
  • Complete shipping address, for total costs (not responsible for incomplete or wrong address)
  • Volume Breaks on Parts are available as mentioned above
  • Warning: your shipping costs could well exceed small purchases


    • Secure Diesel Purchases here, or download and use a purchase form for diesel or gasoline here, thank you!
    Email us any of your questions, then visit EPA Studies & Testimonials on basic fuel economy information.

    AGS Condensator:  (307) 856-6343     Fax: (208) 692-3632
